Elite Sphere of Power

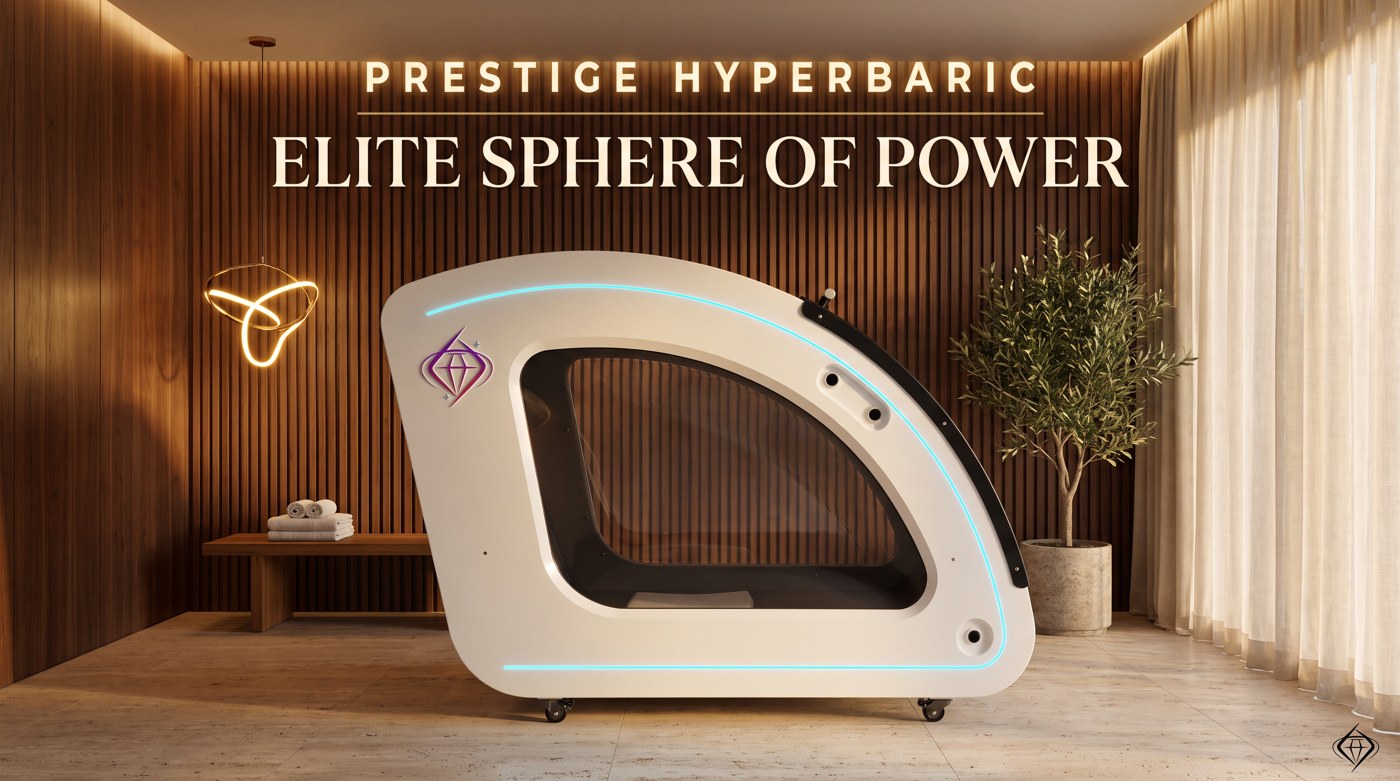

The Elite Sphere of Power is the inaugural model of the Prestige Hyperbaric Elite Series — the most visually extraordinary hardshell hyperbaric chamber ever offered. Where every previous hardshell chamber enclosed you in opaque metal walls, the Elite Sphere of Power wraps you in giant panoramic aviation-grade viewing panels on both sides and across the front door, giving you an unobstructed open-air view of your surroundings throughout every session. Natural light. Open space. Complete immersion in luxury — at full 2.0 ATA clinical-grade pressure.
Overview
⭐ PRE-ORDER NOW — $59,999 | Limited Availability
This is not just a hyperbaric chamber. It is an architectural statement and a peak-performance wellness instrument in one.
Elite Series — Panoramic Viewing Innovation
The panoramic viewing panels on both sides and the front door of the Elite Sphere of Power are constructed from aviation-grade, double-layered polycarbonate/acrylic — the same clarity and impact-resistance class used in aircraft and high-security applications. Sessions that once felt clinical and enclosed now feel expansive and luxurious. The chamber becomes part of your space — a statement piece in any private wellness room, clinic, or home installation.
Key Specifications
- Model: PHP-ESP-20 (Elite Series)
- Category: Hardshell sit-up chamber — Elite Series
- Working pressure: Adjustable in 10 steps from 1.1 to 2.0 ATA (1.1 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8 / 1.9 / 2.0 ATA)
- Capacity: 1 person (sit-up and recline modes)
- Viewing Panels: Aviation-grade double-layered polycarbonate/acrylic viewing panels on both sides and front door
- Interior Seating: Prestige-exclusive premium black diamond-stitched leather power recliner with headrest and massage — included at no extra charge
- External Dimensions: 83 in L × 34 in W × 60 in H (210 × 86 × 153 cm)
- Weight: 1,763 lb (800 kg)
- Power: 110V AC, 20A dedicated outlet recommended
- Oxygen delivery: Integrated 10 LPM concentrator standard (90–97% purity); integrated 20 LPM concentrator upgrade available
- Session timer: Automatic 0–120 minute timer
Premium Interior — Standard
Every Elite Sphere of Power ships with the exclusive Prestige Hyperbaric premium black diamond-stitched leather power recliner — a handcrafted aviation-inspired chair with power recline, adjustable headrest, and integrated back massage for sessions from 30 minutes to multiple hours. The headrest carries the Prestige Hyperbaric emblem. No upgrade needed. This is the standard.
Control & Monitoring
- Dual touchscreen control panels — one inside the chamber, one outside — operate the chamber from either position
- Dual digital display screens (inside and outside) show real-time temperature, humidity, oxygen purity, and pressure via high-precision sensors
- Adjustable pressure in 10 discrete steps with a single press
- Auto 0–120 minute session timer
Safety Features
- Aviation-grade double-layered polycarbonate/acrylic viewing panels — pressure-rated to 2.0 ATA
- Three-piece welded stainless steel chamber body (multi-thickness) with outer aluminum ring reinforcement for higher pressure resistance
- Emergency quick-release valve — full pressure release in 30 seconds
- Multiple safety valves: inside and outside pressure deflate valves plus dedicated pressure relief valves
- Smart door sensor with interior and exterior indicator lights — chamber operates only when door is fully closed
- Power-failure safety system — automatically and slowly releases pressure if power is lost, then auto-drops the door once depressurized
Comfort & Environment
- Efficient electric air cooling system — no ice, no Freon, zero maintenance
- Active dehumidification for dry, clean air throughout every session
- Anion air purification — removes PM2.5 particles down to 2.5 microns
- Water-nano sterilization — eliminates bacteria, odors, and viruses
- Eye-protected interior LED reading light
- Two-way phone and speaker intercom — clear communication with anyone outside the chamber
Available Add-Ons
- 20 LPM integrated oxygen concentrator upgrade
- OmniBreath™ Dual-Logic BIBS system — switch between BIBS mask and standard mask for 90–98% pure oxygen delivery
- HBOT-safe red and near-infrared light with flexible mount
- Entertainment system — adjustable TV holder, Bluetooth speaker, USB power
- Oxygen analyzer with training
- Extended warranty and maintenance plan
Elite Series — Coming Soon
The Elite Sphere of Power is only the beginning. Prestige Hyperbaric is currently developing the next Elite Series chamber: a multi-person hyperbaric suite with the same signature panoramic viewing panels and Elite Series luxury appointments. Sign up at prestigehyperbaric.com to be among the first notified when pre-orders open.
Pre-Order Details
Production capacity for the initial Elite Series run is strictly limited. Pre-order clients receive priority placement in the production and delivery queue, direct contact with an Elite Series specialist, and the 3-Year No-Fuss Warranty as standard. For delivery timelines, financing options, or white-glove installation, contact us at (813) 670-4944 or visit prestigehyperbaric.com .
Final dimensions, delivery access, electrical requirements, and accessory compatibility should be verified with Prestige Hyperbaric before purchase. Pre-order price subject to change.
Regulatory & Wellness Use Notice
Prestige Hyperbaric is not a medical facility; we do not diagnose, treat, cure, or prevent any disease or condition. Cited research, not medical advice. See our FDA Disclosure for details.
